Why Cache-Line Padding Matters

In Part 2A, we built a pre-allocated, power-of-2, cache-aligned ring buffer. You may have noticed the _padding_left and _padding_right fields and the #[repr(C, align(64))] attribute — but we didn't explain why they're essential.

In this post, we'll discover the problem through concrete scenarios, building from naive to perfect solutions. By the end, you'll understand not just what to do, but why each decision matters.

We'll explore four progressively better Rust implementations, see exactly what goes wrong with each, and then compare our choice against LMAX Disruptor's Java-specific approach.

The Four Scenarios

Scenario 1: No Padding (32 bytes) - The Naive Approach

Let's start with the simplest possible implementation:

#[repr(C)]
struct RingBufferNoPadding<T> {
    buffer: Box<[UnsafeCell<MaybeUninit<T>>]>,  // 16 bytes (fat pointer)
    index_mask: usize,                           // 8 bytes
    initialized: AtomicUsize,                    // 8 bytes
    // Total: 32 bytes
}

Looks fine, right? Just 32 bytes of data. But let's see what happens when this struct is embedded in a larger system:

struct Disruptor<T> {
    producer_cursor: AtomicI64,           // Thread A writes here
    ring_buffer: RingBufferNoPadding<T>,  // Thread B reads here
    consumer_cursor: AtomicI64,           // Thread C writes here
}

Memory layout:

Byte 0-7:    producer_cursor (Thread A writes)
Byte 8-23:   ring_buffer.buffer (Thread B reads)
Byte 24-31:  ring_buffer.index_mask (Thread B reads)
Byte 32-39:  ring_buffer.initialized (Thread B reads)
Byte 40-47:  consumer_cursor (Thread C writes)

Now here's the critical insight: Modern CPUs don't load individual bytes from memory. They load cache lines - fixed 64-byte chunks. Think of memory as organized into 64-byte "boxes":

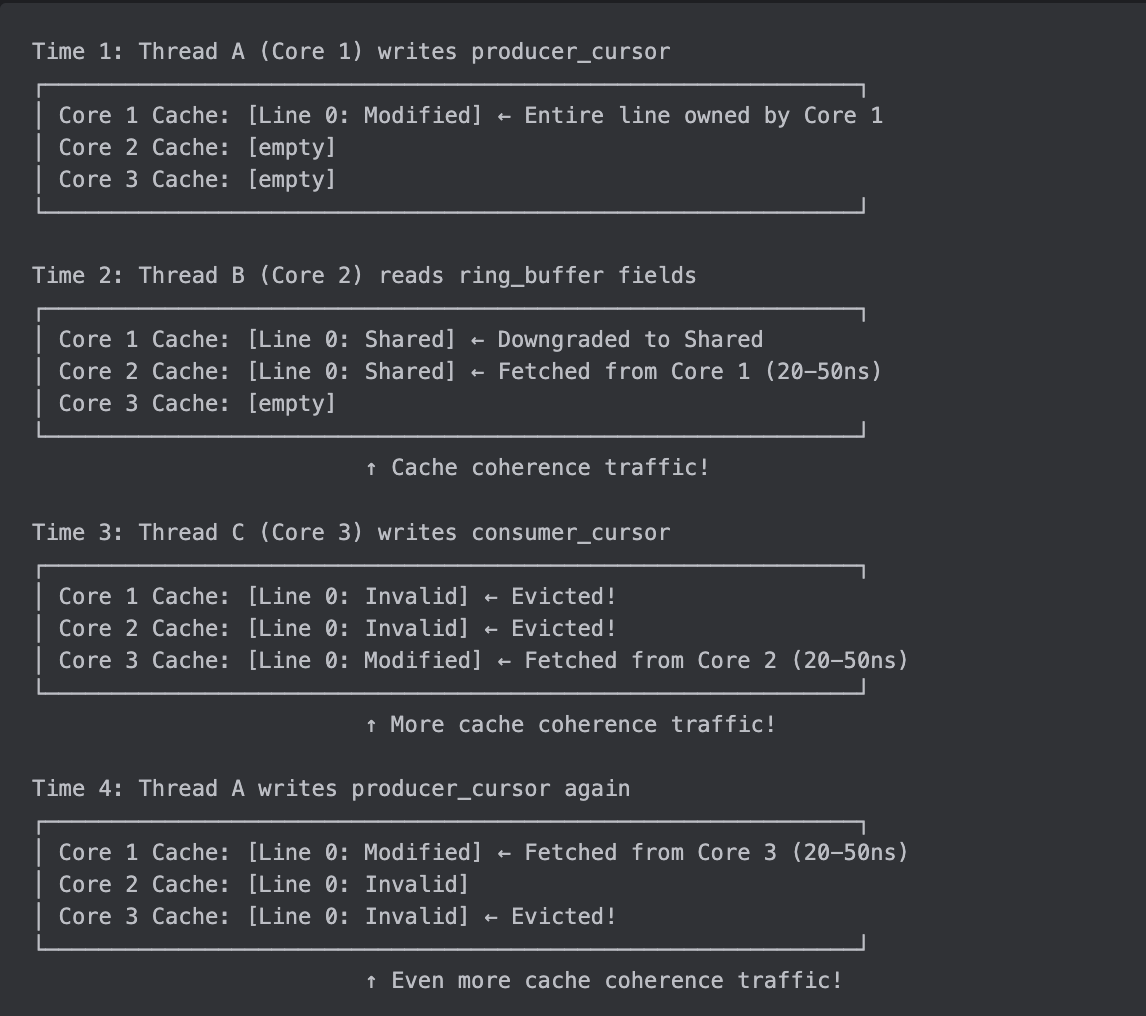

What goes wrong:

This is called "false sharing" - the threads aren't actually sharing data (they access different variables), but the CPU's cache coherence protocol treats them as if they are because they're in the same cache line.

Performance impact:

  • Without false sharing: ~4 cycles per access (L1 cache hit)

  • With false sharing: ~40-150 cycles per access (cache coherence overhead)

  • Slowdown: 10-40x slower!

Why it's called "false" sharing: The threads are logically accessing different data, but the hardware sees them as sharing because cache lines are the atomic unit of cache coherence.

Trade-offs:

  • ✅ Memory: Minimal (32 bytes)

  • ❌ Performance: Terrible (10-40x slower due to cache line ping-pong)

  • ❌ Scalability: Gets worse with more cores

Verdict: Never use in production. This is the "before" picture that shows why padding exists.

Key lesson learned: Cache lines (64 bytes on x86-64) are the atomic unit of cache coherence. If multiple threads access different variables in the same cache line, you get false sharing.

Scenario 2: Right Padding Only (96 bytes) - The Incomplete Solution

"Okay, I learned about false sharing. Let me add padding!" A common first attempt:

#[repr(C)]
struct RingBufferRightPadding<T> {
    buffer: Box<[UnsafeCell<MaybeUninit<T>>]>,  // 16 bytes
    index_mask: usize,                           // 8 bytes
    initialized: AtomicUsize,                    // 8 bytes
    _padding_right: [u8; 64],                    // 64 bytes ← Added padding!
    // Total: 96 bytes
}

The idea: Add 64 bytes of padding after the fields to push the next field into a different cache line.

Does it work? Let's see:

struct Disruptor<T> {
    producer_cursor: AtomicI64,               // Thread A writes here
    ring_buffer: RingBufferRightPadding<T>,   // Thread B reads here
    consumer_cursor: AtomicI64,               // Thread C writes here
}

Memory layout:

Byte 0-7:     producer_cursor (Thread A writes)
Byte 8-23:    ring_buffer.buffer (Thread B reads)
Byte 24-31:   ring_buffer.index_mask (Thread B reads)
Byte 32-39:   ring_buffer.initialized (Thread B reads)
Byte 40-103:  ring_buffer._padding_right (64 bytes of padding)
Byte 104-111: consumer_cursor (Thread C writes)

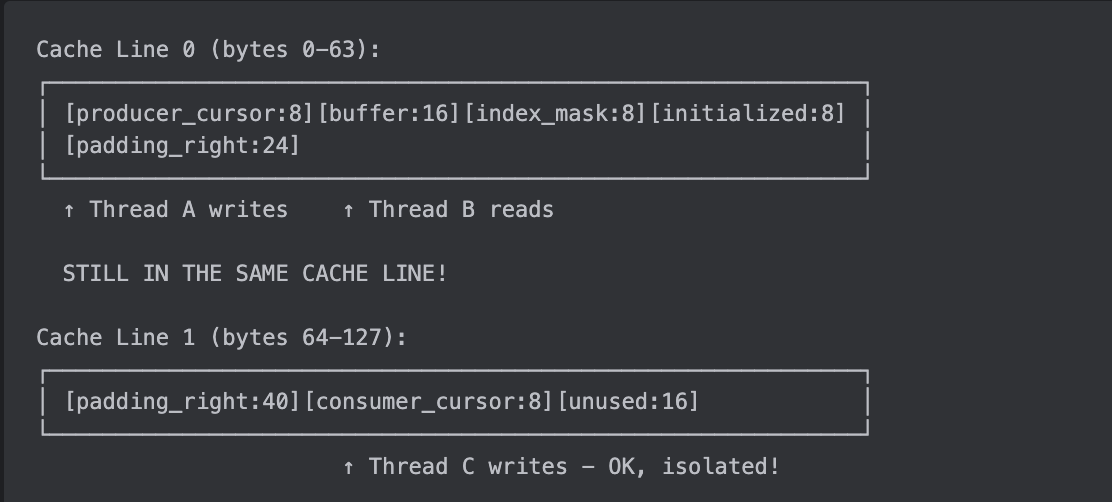

Cache line view:

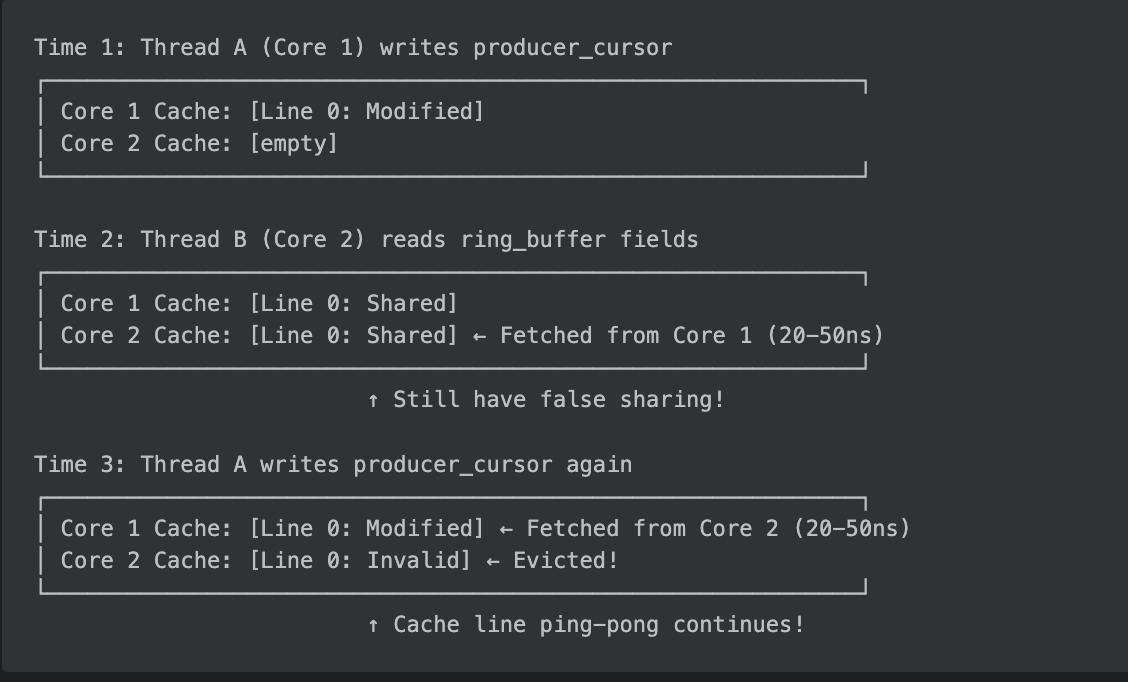

What went wrong:

The problem: Right padding protects against fields that come after the struct (consumer_cursor is now isolated), but it doesn't protect against fields that come before the struct (producer_cursor still shares a cache line with ring_buffer).

What worked:

  • ✅ consumer_cursor is now in Cache Line 1 (isolated from ring_buffer)

  • ✅ Thread C can write to consumer_cursor without affecting Thread B

What didn't work:

  • ❌ producer_cursor still shares Cache Line 0 with ring_buffer

  • ❌ Thread A writing to producer_cursor still invalidates ring_buffer on Thread B's core

Trade-offs:

  • ✅ Memory: Moderate (96 bytes)

  • ⚠️ Performance: 50% better (fixed false sharing on one side)

  • ⚠️ Scalability: Partial improvement

Verdict: Better than nothing, but incomplete. You need padding on both sides.

Key lesson learned: Padding only protects in one direction. You need padding on both sides to isolate a struct from fields before AND after it.

Scenario 3: Both Paddings (160 bytes) - The "Good Enough" Solution

"Okay, I need padding on both sides!" Let's try:

#[repr(C)]
struct RingBufferBothPadding<T> {
    _padding_left: [u8; 64],                     // 64 bytes ← Left padding
    buffer: Box<[UnsafeCell<MaybeUninit<T>>]>,  // 16 bytes
    index_mask: usize,                           // 8 bytes
    initialized: AtomicUsize,                    // 8 bytes
    _padding_right: [u8; 64],                    // 64 bytes ← Right padding
    // Total: 160 bytes data (no alignment guarantee on struct start)
}

The idea: Add 64 bytes of padding on both sides to isolate the fields from neighbors.

Does it work? Let's see:

struct Disruptor<T> {
    producer_cursor: AtomicI64,             // Thread A writes here
    ring_buffer: RingBufferBothPadding<T>,  // Thread B reads here
    consumer_cursor: AtomicI64,             // Thread C writes here
}

Memory layout (assuming ring_buffer starts at byte 8):

Byte 0-7:     producer_cursor (Thread A writes)
Byte 8-71:    ring_buffer._padding_left (64 bytes)
Byte 72-87:   ring_buffer.buffer (Thread B reads)
Byte 88-95:   ring_buffer.index_mask (Thread B reads)
Byte 96-103:  ring_buffer.initialized (Thread B reads)
Byte 104-167: ring_buffer._padding_right (64 bytes)
Byte 168-175: consumer_cursor (Thread C writes)

Cache line view:

This looks good! Each thread's data is in a different cache line. But wait...

The Hidden Problem: No Alignment Guarantee

Here's the catch: #[repr(C)] guarantees field order and field alignment (8 bytes for usize), but it does NOT guarantee that the struct starts at a cache-line boundary (64 bytes).

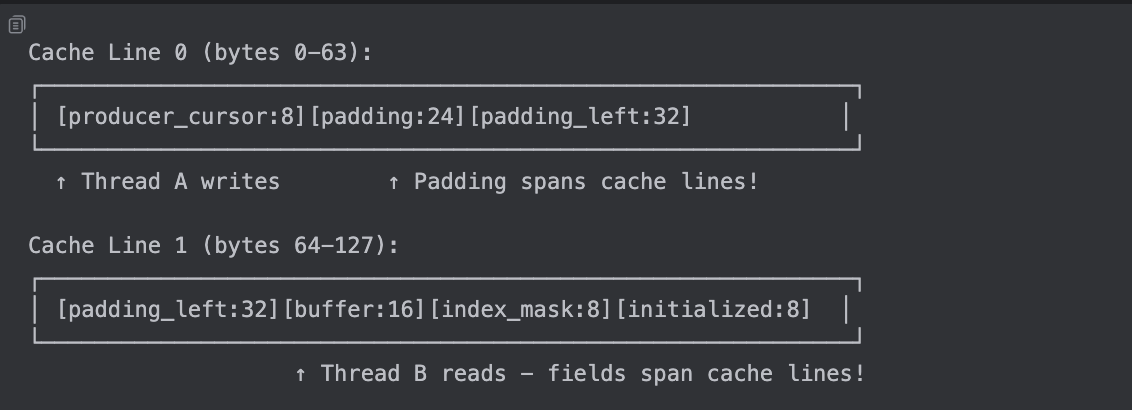

What if the struct starts at byte 0 instead of byte 8?

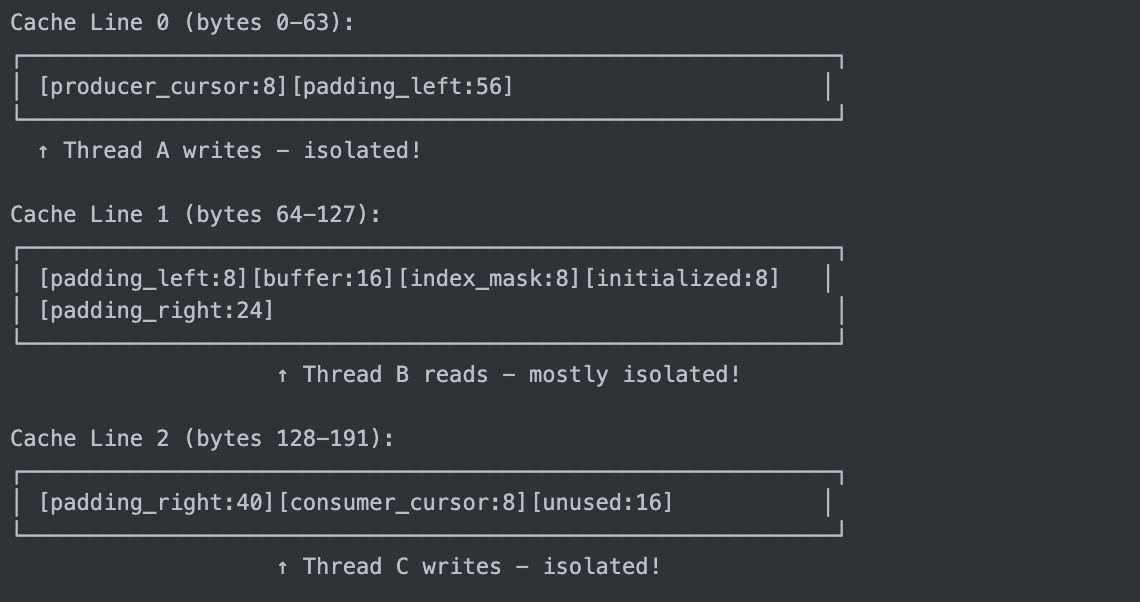

What if the struct starts at byte 32?

The problem: The struct can start at any 8-byte boundary (because the largest field is 8 bytes). This means:

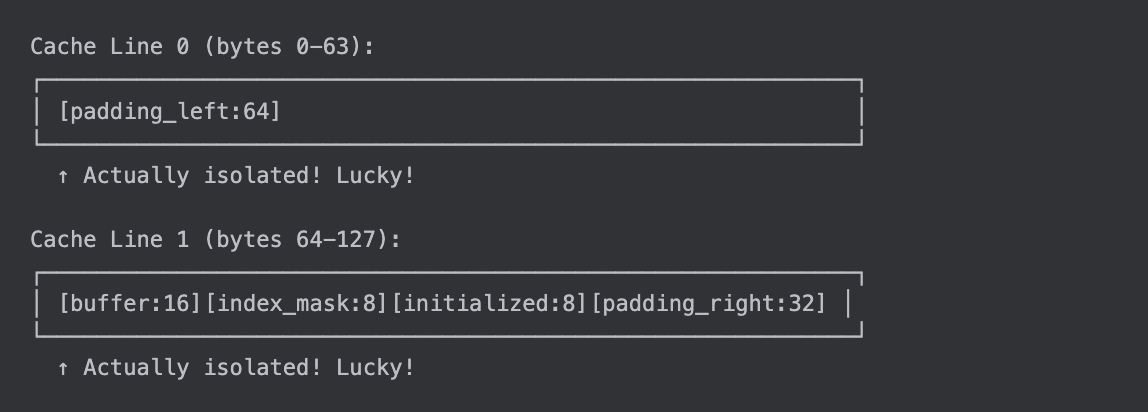

  • Sometimes you get lucky and the padding works perfectly

  • Sometimes the struct starts at an odd offset and fields span cache lines

  • You have no guarantee of cache-line isolation

In practice: Most allocators tend to align larger structs reasonably well, so this "usually works." But it's not guaranteed.

Trade-offs:

  • ✅ Memory: Moderate (160 bytes)

  • ⚠️ Performance: Usually good, but depends on allocation alignment

  • ⚠️ Portability: Works in practice most of the time

  • ❌ Guarantee: No guarantee of cache-line isolation

Verdict: "Good enough" for many use cases. This is what many implementations use because it's simple and usually works. But if you want guaranteed correctness, you need explicit alignment.

Key lesson learned: Padding alone isn't enough. You also need to ensure the struct itself starts at a cache-line boundary.

Scenario 4: Aligned Padding (192 bytes) - The Correct Solution

"I need to guarantee the struct starts at a cache-line boundary!" Here's how:

#[repr(C, align(64))]  // ← Force 64-byte alignment!
struct RingBufferAligned<T> {
    _padding_left: [u8; 64],                     // 64 bytes
    buffer: Box<[UnsafeCell<MaybeUninit<T>>]>,  // 16 bytes
    index_mask: usize,                           // 8 bytes
    initialized: AtomicUsize,                    // 8 bytes
    _padding_right: [u8; 64],                    // 64 bytes
    // Data: 160 bytes, but align(64) pads to 192 bytes (3 cache lines)
}

The key: align(64) tells the compiler "this struct MUST start at a 64-byte boundary." The struct size is also rounded up to a multiple of 64 (from 160 to 192 bytes).

What happens:

struct Disruptor<T> {
    producer_cursor: AtomicI64,            // Thread A writes here
    ring_buffer: RingBufferAligned<T>,     // Thread B reads here
    consumer_cursor: AtomicI64,            // Thread C writes here
}

Memory layout:

Byte 0-7:     producer_cursor (Thread A writes)
Byte 8-63:    [compiler padding] ← Compiler inserts 56 bytes!
Byte 64-127:  ring_buffer._padding_left (64 bytes)
Byte 128-143: ring_buffer.buffer (Thread B reads)
Byte 144-151: ring_buffer.index_mask (Thread B reads)
Byte 152-159: ring_buffer.initialized (Thread B reads)
Byte 160-223: ring_buffer._padding_right (64 bytes)
Byte 224-255: [alignment tail padding] ← Compiler pads to 192 bytes (align 64)
Byte 256-263: consumer_cursor (Thread C writes)

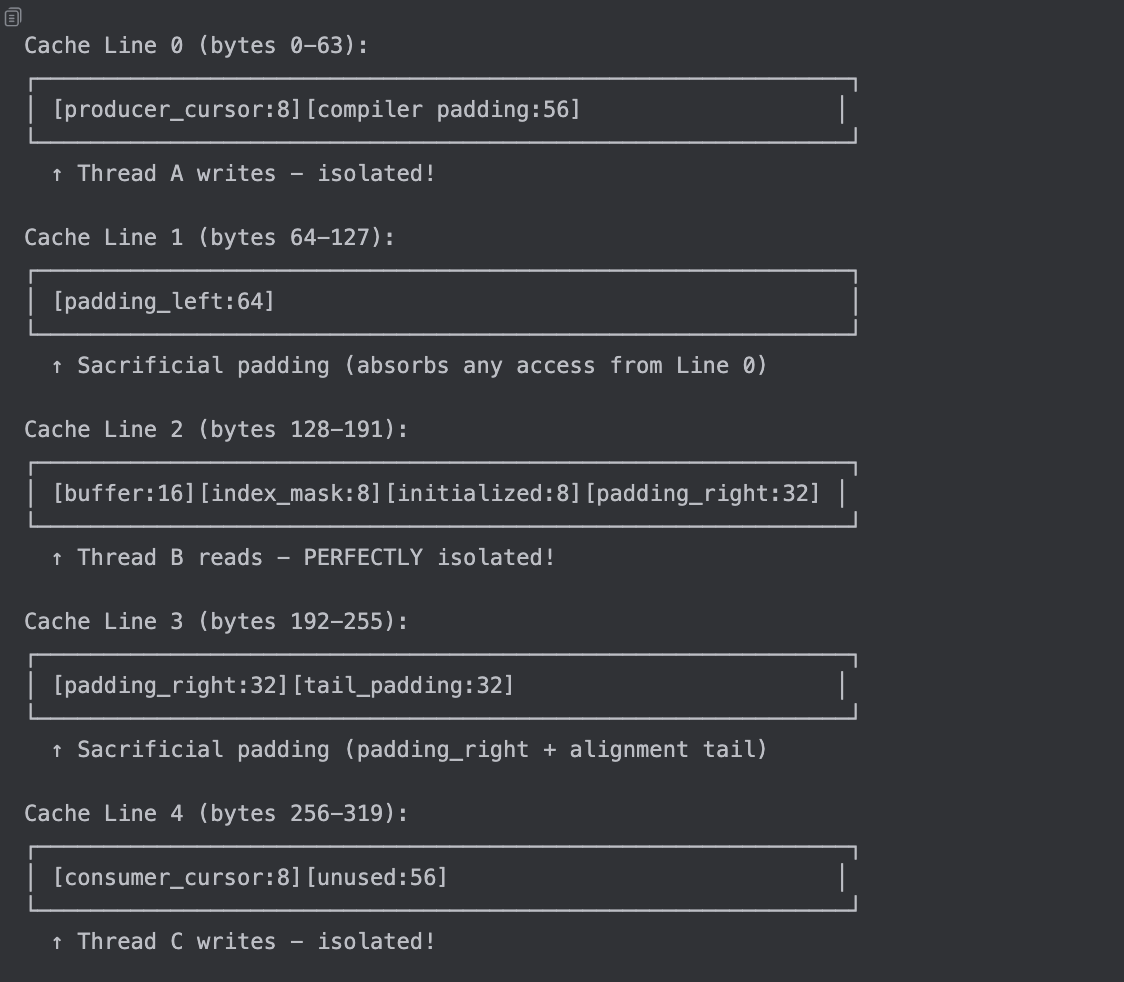

Cache line view:

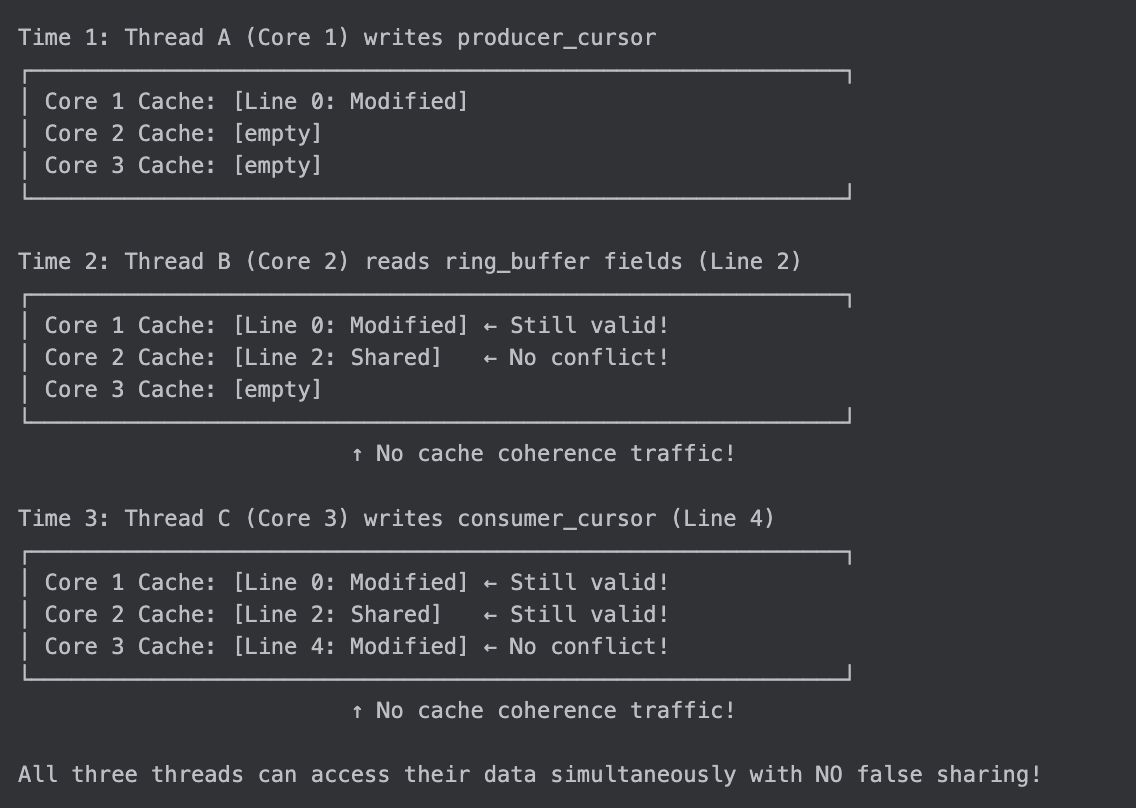

What's different:

Why it works:

  • ✅ align(64) guarantees the struct starts at any multiple of 64 (0, 64, 128, etc.)

  • ✅ Left padding (Line 1) isolates fields from previous fields (Line 0)

  • ✅ Actual fields (Line 2) are in their own cache line

  • ✅ Right padding + tail padding (Line 3) isolates fields from next fields

  • ✅ Consumer cursor (Line 4) is completely isolated

The cost: The struct itself is 192 bytes (std::mem::size_of, including 32 bytes of alignment tail padding). When embedded as a field after a smaller type, the compiler may also insert up to 56 bytes of alignment padding before the struct.

Trade-offs:

  • ⚠️ Memory: 192 bytes (+ up to 56 bytes external alignment padding when embedded)

  • ✅ Performance: Guaranteed cache-line isolation

  • ✅ Correctness: No false sharing, ever

  • ✅ Predictability: Works the same regardless of allocation

Verdict: This is the correct solution. The memory cost is negligible for HFT applications, and you get guaranteed correctness.

Key lesson learned: Use #[repr(C, align(64))] to guarantee cache-line alignment. The compiler will insert padding as needed.

What LMAX Disruptor Actually Chose

Now that you understand all four scenarios, let's see what the LMAX team chose after extensive benchmarking and production monitoring.

Spoiler: They chose none of the above! They used a Java-specific optimization that doesn't directly map to Rust.

Their Solution: 56 Bytes + Object Header (Java-Specific)

// LEFT padding (56 bytes, NOT 64!)
class LhsPadding {
    protected byte
        p10, p11, p12, p13, p14, p15, p16, p17,  // 8 bytes
        p20, p21, p22, p23, p24, p25, p26, p27,  // 8 bytes
        p30, p31, p32, p33, p34, p35, p36, p37,  // 8 bytes
        p40, p41, p42, p43, p44, p45, p46, p47,  // 8 bytes
        p50, p51, p52, p53, p54, p55, p56, p57,  // 8 bytes
        p60, p61, p62, p63, p64, p65, p66, p67,  // 8 bytes
        p70, p71, p72, p73, p74, p75, p76, p77;  // 8 bytes
    // Total: 56 bytes (NOT 64!)
}

class Value extends LhsPadding {
    protected long value;  // 8 bytes
}

class RhsPadding extends Value {
    protected byte
        p90, p91, ..., p157;  // 56 bytes (NOT 64!)
}

public class Sequence extends RhsPadding {
    // Memory layout:
    // [Object header: 12-16 bytes][LhsPadding: 56][value: 8][RhsPadding: 56]
    // Total: ~136 bytes
}

Why 56 bytes instead of 64?

Java objects have an object header (12-16 bytes depending on JVM):

  • Object mark word: 8 bytes

  • Class pointer: 4-8 bytes (compressed oops)

  • Alignment padding: 0-4 bytes

Memory layout:

Offset 0-15:   Object header (12 bytes) + alignment (4 bytes) = 16 bytes
Offset 16-71:  LhsPadding (56 bytes)
Offset 72-79:  value (8 bytes)
Offset 80-135: RhsPadding (56 bytes)
Total: 136 bytes

Cache line analysis:
Cache Line 0 (bytes 0-63):   [header:16][LhsPadding:48]
Cache Line 1 (bytes 64-127): [LhsPadding:8][value:8][RhsPadding:48]
Cache Line 2 (bytes 128-191):[RhsPadding:8][next_field]

The `value` field is in Cache Line 1, with padding on both sides!

Why use bytes instead of longs?

From Aleksey Shipilëv (JVM expert):

❝

"Don't pad with longs: can you see those gaps that could theoretically be taken by the int/compressed-oops fields? JMH pads with bytes."

The problem with long padding:

// BAD: Padding with longs
class BadPadding {
    protected long p1, p2, p3, p4, p5, p6, p7, p8;  // 64 bytes
}

// JVM might reorder and insert smaller fields:
// [p1:8][p2:8][some_int:4][gap:4][p3:8][p4:8]...
// Result: Padding is broken!

With byte padding:

// GOOD: Padding with bytes
class GoodPadding {
    protected byte p10, p11, ..., p77;  // 56 bytes
}

// JVM cannot insert fields - no gaps large enough!
// [p10:1][p11:1][p12:1]...[p77:1]
// Result: Solid padding wall!

LMAX's Trade-off Analysis

Based on their production experience and benchmarks:

Approach

Memory

Performance

Portability

LMAX's Verdict

No padding

32 bytes

❌ Terrible

✅ Works everywhere

Never use

Right padding only

96 bytes

⚠️ Partial

✅ Works everywhere

Incomplete

Both paddings (64+64)

160 bytes

✅ Good

⚠️ Depends on JVM

Redundant with object headers

Both paddings (56+56)

136 bytes

✅ Good

✅ Works on most JVMs

LMAX's choice

Aligned (64+64)

192 bytes

✅ Excellent

✅ Guaranteed

Our Rust choice

Why LMAX chose 56+56 bytes:

  1. ✅ Memory efficiency: 136 bytes vs 160 bytes (15% savings)

  2. ✅ Object header synergy: Leverages "free" padding from Java's object header

  3. ✅ Byte padding: Prevents JVM field reordering tricks

  4. ✅ Empirically tested: Works well in production on all major JVMs

  5. ⚠️ Not perfect: No alignment guarantee

  6. ✅ Pragmatic: Good enough for 99.9% of use cases

Their philosophy: "Make it fast enough, not perfect. Measure, don't guess."

Our Rust Implementation Choice

For Rust, we chose Scenario 4: Aligned Padding for guaranteed correctness:

#[repr(C, align(64))]  // Guarantee cache-line alignment
pub struct RingBuffer<T> {
    _padding_left: [u8; 64],   // Full cache line

    buffer: Box<[UnsafeCell<MaybeUninit<T>>]>,
    index_mask: usize,
    initialized: AtomicUsize,

    _padding_right: [u8; 64],  // Full cache line
}

Why we chose #[repr(C, align(64))] with 64+64 bytes:

  1. ✅ Guaranteed alignment: Struct always starts at 64-byte boundary

  2. ✅ No object headers: Rust has no runtime metadata, so we need full 64 bytes

  3. ✅ Explicit control: We control exact layout with #[repr(C, align(64))]

  4. ✅ Correctness over cleverness: No guessing about allocation patterns

  5. ✅ Negligible cost: ~56 bytes of compiler padding is nothing for HFT

Why NOT follow LMAX's exact approach (56+56 bytes)?

LMAX's situation is fundamentally different:

  • Java: Object headers (12-16 bytes) provide "free" padding → 56+16=72 bytes ≈ cache line

  • Rust: No object headers → Need explicit alignment guarantee

We can't claim "pragmatism" without measurement. LMAX measured and validated their approach in production. We haven't. So we choose correctness.

Trade-offs:

  • ⚠️ Memory: 192 bytes (+ up to 56 bytes external alignment padding when embedded)

  • ✅ Performance: Guaranteed cache-line isolation

  • ✅ Correctness: No false sharing, ever

  • ✅ Honesty: We're not pretending "good enough" without proof

Our philosophy: Measure, don't guess. Until we measure, choose correctness over cleverness.

Summary: Padding Strategy Decision Matrix

When implementing cache-line padding, consider these factors:

Choose No Padding (32 bytes) if:

  • ❌ Never recommended for multi-threaded code

  • Only acceptable for single-threaded or read-only data structures

Choose Right Padding Only (96 bytes) if:

  • ⚠️ You control allocation and can guarantee alignment

  • ⚠️ You're certain no fields come before your struct

  • Generally not recommended - incomplete protection

Choose Both Paddings (160 bytes) if:

  • ✅ You want "good enough" protection with reasonable memory cost

  • ✅ You're following LMAX's pragmatic approach

  • ✅ Your benchmarks show acceptable performance

  • ⚠️ You understand this doesn't guarantee alignment in Rust

Choose Aligned Padding (192 bytes) if:

  • ✅ You need guaranteed cache-line alignment

  • ✅ Memory cost is acceptable

  • ✅ You want to eliminate alignment uncertainty

  • This is our choice for Rust RingBuffer

Key Takeaway: LMAX Disruptor's success proves that "good enough" padding (56+56 bytes in Java with object headers) works well in production. However, Rust lacks object headers, so we need explicit alignment. We chose #[repr(C, align(64))] for guaranteed correctness. Measure, don't guess - and until you measure, choose correctness.

Visual Summary: All Scenarios

LMAX's production data: The "Both Paddings" approach (Scenario 3) delivers nearly all of the performance benefit. However, this is in Java with object headers. In Rust, we chose Scenario 4 (Aligned Padding) for guaranteed correctness.

What We Haven't Covered

The ring buffer (Part 2A) and cache-line padding (this post) give us fast, isolated storage. But we still need:

  • Coordination - How do producers claim slots? (Post 3: Sequencers)

  • Synchronization - How do consumers know when data is ready? (Post 4: Wait Strategies)

  • Dependencies - How do multi-stage pipelines work? (Post 5: Sequence Barriers)

The ring buffer provides fast, cache-friendly storage. The sequencer (Post 3) provides safe, lock-free coordination.

Next Up: Sequencers

In Part 3, we'll build the sequencer - the coordination mechanism that makes the ring buffer safe:

  • Single-producer sequencer - Simple counter (no atomics in fast path)

  • Multi-producer sequencer - CAS-based coordination

  • RAII pattern - SequenceClaim ensures you never forget to publish

  • Memory ordering - Acquire/Release semantics explained

Teaser: We'll achieve lock-free coordination with automatic cleanup via Rust's type system.

References

Papers & Documentation

  1. LMAX Disruptor Paper (2011) https://lmax-exchange.github.io/disruptor/files/Disruptor-1.0.pdf

  2. Intel 64 and IA-32 Architectures Optimization Reference Manual https://www.intel.com/content/www/us/en/developer/articles/technical/intel-sdm.html

  3. "What Every Programmer Should Know About Memory" (Ulrich Drepper, 2007) https://people.freebsd.org/~lstewart/articles/cpumemory.pdf

  4. Agner Fog's Instruction Tables https://www.agner.org/optimize/instruction_tables.pdf

Rust Documentation

Keep Reading

© 2026 Sub-Microseconds.
Report abusePrivacy policyTerms of use
beehiivPowered by beehiiv
